Online Food Ordering Data Model | Subject area: STORE

Overview

The Logical Data Model of the STORE Subject Area includes the following entities:

Entity: STORE
Entity: SETTING
Entity: LANGUAGE
Entity: CURRENCY
Entity: HOUR
Entity: HOLIDAY_REASON
Entity: HOLIDAY

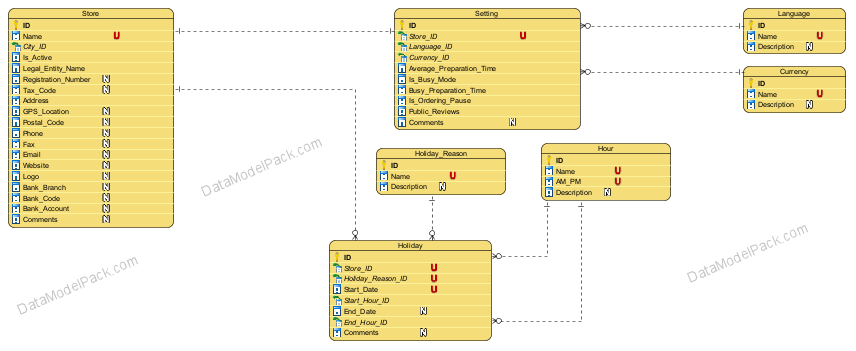

Online Food Ordering Store Data Model Click to zoom

Entity: STORE

This entity records information about all the Stores (locations) of the Online Food Ordering.

Attributes	Description
`ID`	PRIMARY KEY
`Name`	Store name. UNIQUE identifies the Store. Cannot register two Stores with the same Name. NOT NULL UNIQUE
`City_ID`	Lookup for the City where the Store is located. NOT NULL
`Is_Active`	Flag attribute to indicate if the Store is still operational at location or it is closed permanently. NOT NULL
`Legal_Entity_Name`	Legal Entity Name of the company that owns the Store. NOT NULL
`Registration_Number`	Registration Number of the company that owns the Store.
`Tax_Code`	Tax Code of the company that owns the Store (VAT code).
`Address`	Store Address used for creating invoice, delivery pick-up location etc. NOT NULL
`GPS_Location`	Store GPS location. Can be used for delivery pick-up location etc
`Postal_Code`	Store postal code.
`Phone`	Store phone number.
`Fax`	Store fax number.
`Email`	Store email.
`Website`	Store website http address.
`Logo`	Store logo (image, etc).
`Bank_Branch`	Branch of the bank where the company that owns the Store has the bank account.
`Bank_Code`	Bank code of the bank where the company that owns the Store has the bank account.
`Bank_Account`	Bank Account of the company that owns the Store.
`Comments`	Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

Entity: SETTING

This entity records the Settings (parameters) defined at Store level.

Attributes	Description
`ID`	PRIMARY KEY
`Store_ID`	Lookup for the Store for which the Setting was defined. Each Store has a Setting record. NOT NULL UNIQUE
`Language_ID`	Lookup for the main language used on the Store website. NOT NULL
`Currency_ID`	Lookup for the main currency used on the Store website. NOT NULL
`Average_Preparation_Time`	Average preparation time for an Order. `Average_Preparation_Time` is expressed in number of minutes. NOT NULL
`Is_Busy_Mode`	Flag attribute to indicate if the Store is busy. Example: ⦁ If `Is_Busy_Mode` attribute is set TRUE, then the estimated Order preparation time is increased from `Average_Preparation_Time` to `Busy_Preparation_Time`. See Subject Area: ORDER - Order Process and Status, Step: Prepare Order for more information. NOT NULL
`Busy_Preparation_Time`	Estimated preparation time for an Order when the Store is busy. `Busy_Preparation_Time` is expressed in number of minutes. NOT NULL
`Is_Ordering_Pause`	Flag attribute to indicate if the Store is in ordering pause. Example: ⦁ If `Is_Ordering_Pause` attribute is set TRUE, then the Customers are blocked to send new Orders. In this case the Store will not receive new Orders. ⦁ As soon as the `Is_Ordering_Pause` attribute is set FALSE, the Store will start to receive new Orders. See Subject Area: ORDER - Order Process and Status, Step: Prepare Order for more information. NOT NULL
`Public_Reviews`	Flag attribute to indicate if the Customer order reviews are public and displayed on the Store website. NOT NULL. Example: ⦁ If `Public_Reviews` attribute is set TRUE then the Customer reviews are public and can be viewed by other Customers on Store website ⦁ If `Public_Reviews` attribute is set FALSE then the Customer reviews are private and cannot be viewed by other Customers on Store website. See Subject Area: ORDER, Entity: ORDER_REVIEW for more information.
`Comments`	Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees

Entity: LANGUAGE

Languages list

Attributes	Description
`ID`	PRIMARY KEY
`Name`	Language name. NOT NULL UNIQUE
`Description`	Language description

Entity: CURRENCY

Currencies list

Attributes	Description
`ID`	PRIMARY KEY
`Name`	Currency name NOT NULL UNIQUE
`Description`	Currency description

Entity: HOUR

Day hours list. This entity facilitates Store and Menu hours selection and display.

Attributes	Description
`ID`	PRIMARY KEY
`Name`	Hour name NOT NULL
`AM_PM`	Ante Meridian or Post Meridian hour. This attribute can have 'AM' or 'PM' value. NOT NULL
`Description`	Hour description

CONSTRAINT Hour_UK UNIQUE (Name, AM_PM)).

Example

HOUR

Name	AM_PM
9	AM
9	PM
3	AM
7	PM etc.

Entity: HOLIDAY_REASON

List of holiday reasons. Could be legal holidays or other ad-hoc store holidays.

Attributes	Description
`ID`	PRIMARY KEY
`Name`	Holiday reason (holiday name) NOT NULL UNIQUE
`Description`	Holiday description

Entity: HOLIDAY

This entity records all Holidays for each Store.

Attributes	Description
`ID`	PRIMARY KEY
`Store_ID`	Lookup for the Store for which the Holiday record was defined. Each Store can have many Holiday records. NOT NULL
`Holiday_Reason_ID`	Lookup for the Holiday reason (Holiday name) for which the Holiday record was defined. NOT NULL
`Start_Date`	Holiday start date. NOT NULL
`Start_Hour_ID`	Lookup for the Holiday start hour. NOT NULL
`End_Date`	Holiday end date. NOT NULL
`End_Hour_ID`	Lookup for the Holiday end hour. NOT NULL
`Comments`	Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

CONSTRAINT UK_Holiday UNIQUE (Store_ID, Holiday_Reason_ID, Start_Date). Cannot have two Holidays for the same Store, with the same Holiday Reason and starting on the same date.
