We have focused on documenting in details the Inventory Management Data Model so you can develop application code quickly and with confidence.

Database schema design

Navigate to each subject area to get powerful insights into entities and attributes (tables and columns), data workflows and business use cases.

Item5 entitiesInventory and Stock4 entitiesOrder13 entitiesSupplier3 entitiesStore5 entitiesStock Movement Document16 entitiesEmployee and Role7 entities

Order process and status

The Order Process and Status diagram details the process steps and the Order status workflow from the moment when a NEW Order is created till the moment the Order is acknowledged COMPLETE.

View the Order process and status

Subject area diagrams

Every subject area has its own logical data model diagram. Click a diagram to zoom in.

Inventory Management Admin user data model diagramAdmin userInventory Management Document data model diagramDocumentInventory Management Employee and role data model diagramEmployee and roleInventory Management Employee login data model diagramEmployee loginInventory Management Inventory and stock data model diagramInventory and stockInventory Management Item data model diagramItemInventory Management Loss and damage data model diagramLoss and damageInventory Management Order line data model diagramOrder lineInventory Management Order parameter data model diagramOrder parameterInventory Management Order process data model diagramOrder processInventory Management Order data model diagramOrderInventory Management Purchase data model diagramPurchaseInventory Management Sale return data model diagramSale returnInventory Management Shipment data model diagramShipmentInventory Management Stock return data model diagramStock returnInventory Management Store data model diagramStoreInventory Management Supplier data model diagramSupplier

Entity Relationship Diagram

We offer the Entity Relationship Diagram (Inventory Management ERD) so you can review the database design quickly and decide whether it meets your requirements.

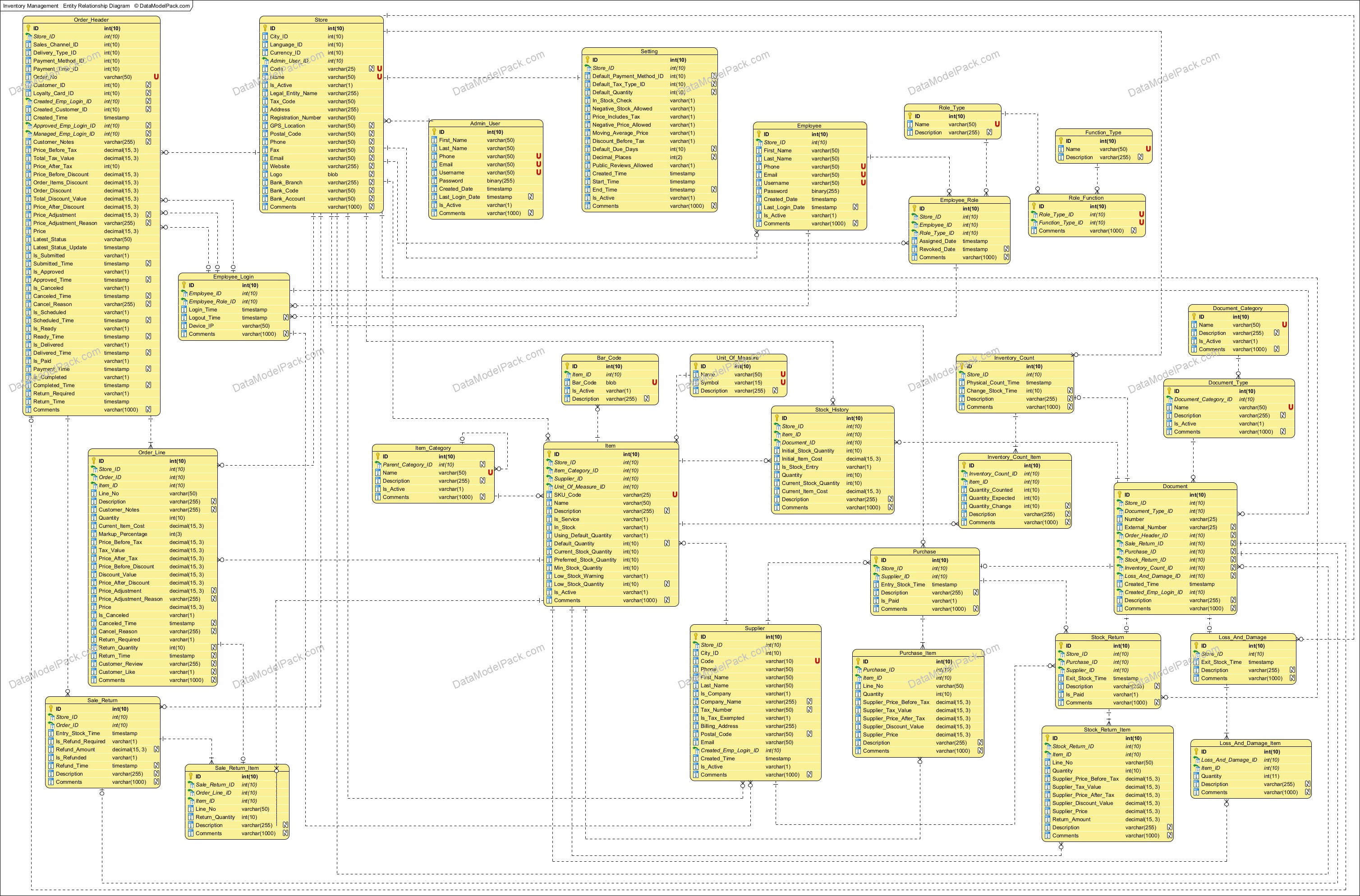

Inventory Management entity relationship diagram
Inventory Management Entity Relationship Diagram Click to zoom

View the Inventory Management ERD page

SQL DDL scripts

We have already prepared the SQL DDL (Data Definition Language) scripts for creating the database schema objects (tables, columns, primary keys, foreign keys, etc.). SQL DDL scripts available for MySQL, MS SQL Server, Oracle, PostgreSQL, Sybase and more.

Download the demo SQL DDL scriptsBrowse the scripts online

The Demo edition of the SQL DDL scripts will create 50% of the database schema. Learn about licensed editions.

Purchase the full version of the SQL DDL scripts

Accelerate every database schema design with powerful data models

We have already created the database diagram and prepared the SQL DDL scripts to deploy your database schema. Download a free Demo edition and evaluate it in your own database.

Try Data Model Pack freeView pricing
