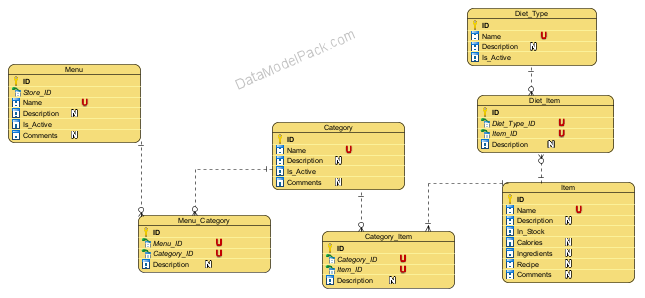

Entity: MENU

Top

This entity records information about all the Menus available at a Store. One Store can have many Menus available.

Attributes
ID PRIMARY KEY
Store_ID Lookup for the Store for which the Menu was recorded. NOT NULL
Name Menu name. NOT NULL UNIQUE. Can't have two Menus with the same Name at a Store.
Description Menu description.
Is_Active Flag attribute to indicate if the Menu is still available at the Store or it was canceled permanently. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees

Example

MENU

Name
Breakfast
Lunch
Dinner
etc.

Entity: CATEGORY

Top

List of food categories

Attributes
ID PRIMARY KEY
Name Name of food category. NOT NULL UNIQUE. Can't have two food categories with the same Name.
Description Description of food category.
Is_Active Flag attribute to indicate if the food category is still available or it was canceled permanently. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees

Example

CATEGORY

Name
Pasta
Pizza
Salads
Sandwiches
Desserts
Drinks
etc.

Entity: MENU_CATEGORY

Top

This entity records all the food Categories assigned to a Menu. Each Menu can have many food Categories assigned.

Attributes
ID PRIMARY KEY
Menu_ID Lookup for the Menu to which the food Category is assigned. NOT NULL
Category_ID Lookup for the food Category to be assigned to the Menu. NOT NULL
Description Description.

CONSTRAINT UK_Menu_Category UNIQUE (Menu_ID, Category_ID). Cannot have the same food Category assigned twice to the same Menu.

Example

MENU_CATEGORY table contains the Menu_ID and the Category_ID for all the food Categories assigned to a Menu.
Each Menu can have many food Categories assigned:

Menu_ID Name Category_ID Name
2 Breakfast 23 Sandwiches
2 Breakfast 27 Desserts
3 Lunch 7 Pizza
3 Lunch 28 Salads
3 Lunch 27 Desserts

Important The above values for the Menu_ID and the Category_ID are just samples. When populate the MENU_CATEGORY table with values, you should use the Menu_ID and the Category_ID values from your database.

Entity: ITEM

Top

List of all food items.

Attributes
ID PRIMARY KEY
Name Name of food item. NOT NULL UNIQUE. Can't have two food items with the same Name.
Description Description of food item. This description can be displayed near the item Name when Customers select the item for an Order.
Calories Number of calories of the food item.
Ingredients Description of the ingredients of the food item.
Recipe Description of the recipe of the food item.
In_Stock Flag attribute to indicate if the food item is still available in stock. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees

Example

ITEM

Name
Penne Carbonara
Spaghetti
Apple Cake
Ice cream
Espresso
etc.

Example

How to use In_Stock flag in your application

When In_Stock flag is set FALSE for an Item then:

  • the Item is displayed 'Out of stock' on the Menu webpage and Customers cannot select the Item for new Orders
    or
    the Item is not displayed at all on the Menu webpage before the In_Stock flag becomes TRUE
  • a notification is sent to all Customers who had already placed Orders with the Item before the In_Stock flag was set FALSE.
    Notification is NOT sent if the Order is already in READY_FOR_SHIPMENT/PICK-UP/DINE-IN status.
    See Subject Area: ORDER - Order Process and Status for more information .
    When receives the notification, Customers can Cancel their Orders or update the Orders with an Item in stock. If no response action from a Customer in a number of minutes (for example in 15 minutes), the impacted Order is Canceled automatically.
    This is a more complex application functionality. The Data model is flexible enough to accommodate this functionality implementation.

Entity: CATEGORY_ITEM

Top

This entity records all the food Items assigned to a food Category. Each Category can have many food Items assigned.

Note

Each food Item should be assigned to at least one food Category. Otherwise the food Item is not visible when Customer browses the food Categories to select the food Items for an Order.

Attributes
ID PRIMARY KEY
Category_ID Lookup for the food Category to which the food Item is assigned. NOT NULL
Item_ID Lookup for the food Item to be assigned to the food Category. NOT NULL
Description Description.

CONSTRAINT UK_Category_Item UNIQUE (Category_ID, Item_ID). Cannot have the same food Item assigned twice to the same food Category.

Example

CATEGORY_ITEM table contains the Category_ID and the Item_ID for all the food Items assigned to a food Category.
Each food Category can have many food Items assigned:

Category_ID Name Item_ID Name
2 Pasta 28 Penne carbonara
2 Pasta 142 Spaghetti
3 Desserts 23 Apple Cake
3 Desserts 27 Ice cream
4 Drinks 7 Espresso

Important The above values for the Category_ID and the Item_ID are just samples. When populate the CATEGORY_ITEM table with values, you should use the Category_ID and the Item_ID values from your database.

Entity: DIET_TYPE

Top

List of diet types.

Attributes
ID PRIMARY KEY
Name Diet type name. NOT NULL UNIQUE. Can't have two diet types with the same Name.
Description Description of the diet type.
Is_Active Flag attribute to indicate if the diet type is still available for customers or it was canceled permanently. NOT NULL

Example

DIET_TYPE

Name
Vegetarian
Sugar free
etc.

Entity: DIET_ITEM

Top

This entity records all the food Items that are assigned to a Diet Type. Each Diet Type can have many food Items assigned.

Attributes
ID PRIMARY KEY
Diet_Type_ID Lookup for the Diet Type to which the food Item is assigned. NOT NULL
Item_ID Lookup for the food Item to be assigned to a Diet Type. NOT NULL
Description Description.

CONSTRAINT UK_Diet_Item UNIQUE (Diet_Type_ID, Item_ID). Cannot have the same food Item assigned twice to the same Diet Type.

Example

DIET_ITEM table contains the Diet_Type_ID and the Item_ID for all the food Items assigned to a Diet Type.
Each Diet Type can have many food Items assigned:

Diet_Type_ID Name Item_ID Name
2 Vegetarian 23 Tomatoes salad
2 Vegetarian 27 Roasted potatoes
3 Sugar-free 7 Espresso

Important The above values for the Diet_Type_ID and the Item_ID are just samples. When populate the DIET_ITEM table with values, you should use the Diet_Type_ID and the Item_ID values from your database.

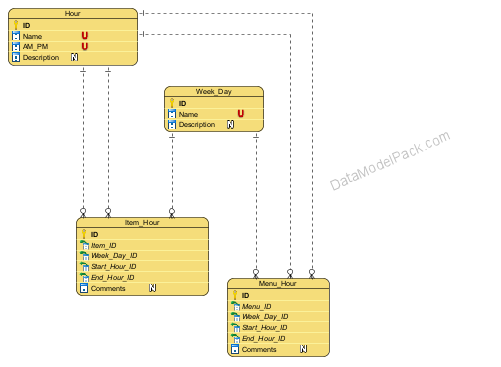

Entity: HOUR

Top

Day hours list. This entity facilitates Store and Menu hours selection and display.

Attributes
ID PRIMARY KEY
Name Hour name NOT NULL
AM_PM Ante Meridian or Post Meridian hour. This attribute can have 'AM' or 'PM' value. NOT NULL
Description Hour description

CONSTRAINT Hour_UK UNIQUE (Name, AM_PM)).

Example

HOUR

Name AM_PM
9 AM
9 PM
3 AM
7 PM etc.

Entity: WEEK_DAY

Top

Week days list. This entity facilitates week days selection and display.

Attributes
ID PRIMARY KEY
Name Week day name NOT NULL UNIQUE
Description Week day description

Example

WEEK_DAY

Name Description
Monday 1 - First day of the week
Tuesday 2 - Second day of the week
Wednesday 3 - Third day of the week
etc

Entity: ITEM_HOUR

Top

This entity records information if the restaurant Store can sell some food Items only on specific days of the week (for example only during weekends) and only for a limited time interval (for example from 2 PM to 4 PM).

Note

The Item hours override the Menu hours. See Entity: MENU_HOURS for more information.

Attributes
ID PRIMARY KEY
Item_ID Item lookup. The food item for which the Item hours are recorded. NOT NULL
Week_Day_ID Week day lookup. The day of the week when the food item can be ordered. NOT NULL
Start_Hour_ID Start hour lookup. The start hour from which the food item can be ordered. NOT NULL
End_Hour_ID End hour lookup. The end hour after which the item can not be ordered. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

Example

ITEM_HOUR

Item ID Name Week Day ID Name Start Hour ID Name End Hour ID Name
87 Tuna steak 6 Saturday 9 1 PM 14 5 PM
87 Tuna steak 7 Sunday 9 1 PM 14 5 PM
35 Fresh seafood 1 Monday 13 8 AM 25 8 PM
If you don't need to control the Item hours just let this table empty.

Important The above values for the Item_ID, Week_Day_ID, Start_Hour_ID, End_Hour_ID are just samples. When populate the ITEM_HOUR table with values, you should use the Item_ID, Week_Day_ID, Start_Hour_ID, End_Hour_ID values from your database.

Entity: MENU_HOUR

Top

This entity records information about the Menus available only on specific days of the week (for example only during weekends) and only for a limited time interval (for example from 2 PM to 4 PM).

Note

The Store Holiday hours override the Menu hours. See Subject Area: STORE, Entity: HOLIDAY for more information.

Attributes
ID PRIMARY KEY
Menu_ID Menu lookup. The Menu for which the Menu hours are recorded. NOT NULL
Week_Day_ID Week day lookup. The week day when the Menu is available for a limited time interval. NOT NULL
Start_Hour_ID Menu start hour lookup. NOT NULL
End_Hour_ID Menu end hour lookup. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

Example

MENU_HOUR

Menu ID Name Week Day ID Name Start Hour ID Name End Hour ID Name
7 Brunch 6 Saturday 9 8 AM 14 4 PM
7 Brunch 7 Sunday 10 9 AM 24 5 PM
3 Lunch 1 Monday 13 12 AM 14 4 PM
If you don't need to control the Menu hours just let this table empty.

Important The above values for the Menu_ID, Week_Day_ID, Start_Hour_ID, End_Hour_ID are just samples. When populate the MENU_HOUR table with values, you should use the Menu_ID, Week_Day_ID, Start_Hour_ID, End_Hour_ID values from your database.

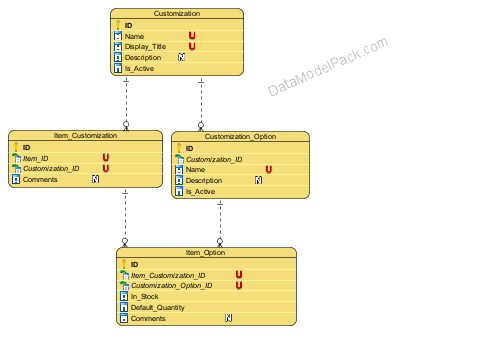

Entity: CUSTOMIZATION

Top

List of customizations that can be applied to a food item: 'Topping', 'Portion size' etc. The Customer has the possibility to choose from the pre-defined customizations.

Attributes
ID PRIMARY KEY
Name Customization name. Can't have two Customizations with the same Name. NOT NULL UNIQUE
Display_Title Display title for Customer. Can't have two Customizations with the same Display title. NOT NULL UNIQUE
Description Customization description.
Is_Active Flag attribute to indicate if the Customization is still available or the Customization was canceled permanently and the Customers can not select it anymore. NOT NULL

Example

CUSTOMIZATION

Name Display_Title
Topping Please choose the topping
Portion size Please choose the portion size
etc

Entity: CUSTOMIZATION_OPTION

Top

This entity records all the Customization Options assigned to a Customization.

Attributes
ID PRIMARY KEY
Customization_ID Lookup for the Customization to which the Customization Option is assigned. NOT NULL
Name Name of the customization option. NOT NULL UNIQUE. Can't have two customization options with the same Name.
Description Description of customization option.
Is_Active Flag attribute to indicate if the customization option is still available for customizations or it was canceled permanently. NOT NULL

Example

CUSTOMIZATION_OPTION

Customization ID Name Customization Option ID Name
2 Topping 23 Chocolate
2 Topping 27 Strawberry
2 Topping 42 Vanilla
3 Portion size 7 Small
3 Portion size 8 Medium
3 Portion size 9 Large

Entity: ITEM_CUSTOMIZATION

Top

This entity records all the Customizations available for a food Item. Each food Item can have 0, 1 or many Customizations available.

Attributes
ID PRIMARY KEY
Item_ID Lookup for the food Item to which the Customization is assigned. NOT NULL
Customization_ID Lookup for the Customization to be assigned to the food Item. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

CONSTRAINT UK_Item_Customization UNIQUE (Item_ID, Customization_ID). Cannot have the same Customization assigned twice to the same food Item.

Example

ITEM_CUSTOMIZATION table contains the Item_ID and the Customization_ID for all the Customizations available for a food Item. Each food Item can have 0, 1 or many Customizations available:

Item ID Name Customization ID Name
27 Ice cream 2 Topping
24 Roasted potatoes 3 Portion size
23 Apple Cake 2 Topping
23 Apple Cake 3 Portion size

Important The above values for the Item_ID and the Customization_ID are just samples. When populate the ITEM_CUSTOMIZATION table with values, you should use the Item_ID and the Customization_ID values from your database.

Entity: ITEM_OPTION

Top

This entity records all the Customization Options available for an Item.

For example the food Item: 'Apple Cake' has the assigned Customization: 'Topping'. See Entity: ITEM_CUSTOMIZATION for more information.

If for the food Item: 'Apple Cake' you would want to restrict the Customization: 'Topping' only to the Customization Option: 'Vanilla', then you should enter a record in the ITEM_OPTION table as in the example below.

In this case all the other 'Topping' customization options ('Chocolate', 'Strawberry' etc.) are not available for selection when a Customer will add the 'Apple Cake' item to an Order.

Attributes
ID PRIMARY KEY
Item_Customization_ID Lookup for the record in the ITEM_CUSTOMIZATION table to which the Customization Option is assigned. NOT NULL
Customization_Option_ID Lookup for the Customization option to be assigned. NOT NULL
In_Stock Flag attribute to indicate if the Item Option is still available in stock.
For example the In_Stock attribute can indicate if the Customization: 'Topping' with the Customization Option: 'Chocolate' is in stock for the Item: 'Ice-cream'.
The In_Stock flag can control the decision to suspend a Customization Option for an Item and continue the Customization Option for other Items. NOT NULL
Default_Quantity This is an indication for Customer about the default quantity of the customization that is delivered with the Item.
For example for the Customization: 'Topping', for the Customization Option: 'Chocolate' for the Item: 'Ice cream' you can set the Default_Quantity: 1. That means if Customer would want to add 'Chocolate' topping two times to the Item, then should pay separately for the quantity over the default quantity. See Subject Area: PRICE AND DISCOUNT for more information. NOT NULL
Comments Internal notes used for clarifications on record content. Can be seen and edited only by Store Employees.

UK_Item_Option UNIQUE (Item_Customization_ID, Customization_Option_ID). Cannot have the same Customization Option assigned twice to the same Item_Customization record.

Example

ITEM_CUSTOMIZATION

Item ID Name Customization ID Name
27 Ice cream 2 Topping
24 Roasted potatoes 3 Portion size
23 Apple Cake 2 Topping
23 Apple Cake 3 Portion size

Example

CUSTOMIZATION_OPTION

Customization ID Name Customization Option ID Name
2 Topping 23 Chocolate
2 Topping 27 Strawberry
2 Topping 42 Vanilla
3 Portion size 7 Small
3 Portion size 8 Medium
3 Portion size 9 Large

Example

ITEM_OPTION table records all the Customization Options available for a specific food Item.
In this case all the other 'Topping' customization options ('Chocolate', 'Strawberry' etc) are not available for selection when a Customer will add the 'Apple Cake' Item to an Order.

Item ID Name Customization ID Name Customization Option ID Name
23 Apple Cake 2 Topping 42 Vanilla
